Productdetails:
|
| Productnaam: | foto -elektrische sensor | Detectieafstand: | 50300mm (regelbaar) |
|---|---|---|---|
| Bedrijfsspanning: | 12-24V DC | Beschermingscategorie: | IP55 |
| Bedrijfstemperatuur: | 0℃…+55℃ | Certificering: | CE RoHS |
| Markeren: | NPN PNP photoelectric proximity sensor,300mm diffuse square proximity sensor,10-30VDC photoelectric sensor |
||

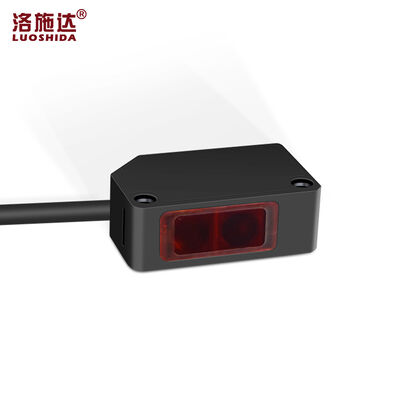

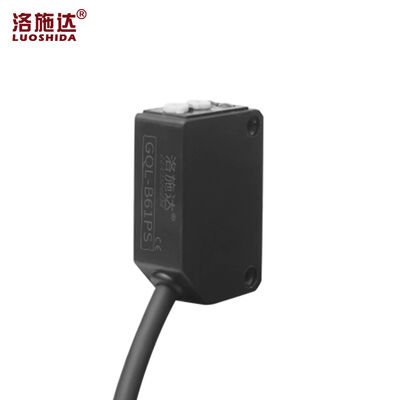

| GQL-B61NS Photoelectric mirror diffuse reflection sensor | |||||

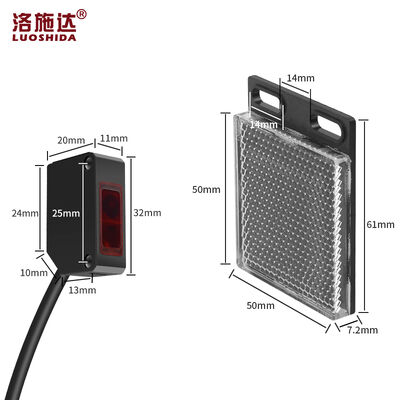

| Size | 32*11*20mm | ||||
| Sensing distance | 50-300mm(Adjustable) | ||||
| Standard detection object | 200*200mm White card | ||||
| Light source | 650nm Red light | ||||
| Light spot size | Standard 2mm | ||||
| Housing material | PC | ||||
| With LED | Orange LED/Green LED | ||||
| Mode | NPN N.O./N.C. | GQL-B61NS | |||
| PNP N.O./N.C. | GQL-B61PS | ||||
| Operating voltage | 12-24V DC | ||||
| No load curent | <15mA | ||||
| Max.load current | 150mA | ||||
| Leakage current | <0.01mA | ||||
| Voltage drop | <1.5V | ||||
| Switching frequency | 100Hz | ||||
| Response time | 5ms | ||||
| Switching hysteresis | <10%(Sr) | ||||
| Repeat accuracy | <5%(Sr) | ||||
| Protection category | IP55 | ||||
| Operating temperature | 0℃…+55℃ | ||||
| Temperature drift | — | ||||
| Shot circuit protection | Yes | ||||
| Overload trip point | 190mA | ||||
| Connection | φ3.8 2M PVC cable,4*0.15mm² | ||||
| Weight | About 40.0g | ||||
| Certification | CE RoHS | ||||
