Productdetails:
|
| Productnaam: | Versterker met glasvezel | Reactietijd: | MARK-modus 50 microseconden, C-modus 130 microseconden |
|---|---|---|---|
| Voorwaarde: | 100% nieuw 100% origineel | Werktemperatuur: | -10+55°C geen bevriezing |
| Selectie van de output: | LICHT-AAN/DONKER-AAN (schakelaarselectie) | Omgevingslicht: | Gloeilamp: Max. 20.000 lux, daglicht:Max. 30.000 lux |
| Markeren: | RGB fiber optic amplifier,NPN/PNP fiber optic detector,color-sensitive fiber sensor amplifier |
||
| Detection distance | Flush 1mm/Non-flush 2mm |
| Response time | MARK mode 50 microseconds,C mode 130 microseconds |
| Working temperature | -10+55°C no freezing |
| Output selection | LIGHT-ON/DARK-ON(Switch Selection) |
| Display Indicator | Operation indicator: red LED, dual digital monitor: double 7-digit display, the threshold(4-digit green LED indicator) and the current value (4-digit red LED indicator) are lit together. Current value range :0 to 9999 |

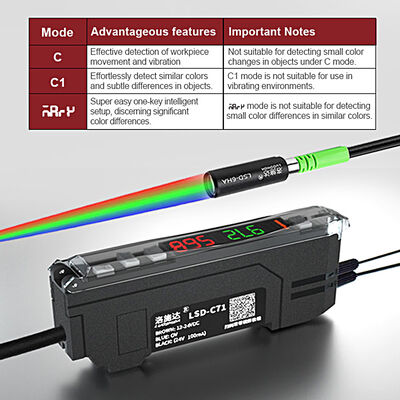

| Detection Method | Light intensity detection MAKR and color automatic matching C and color + brightness value detection Cl |
| Delay Function | Open delay timer/Open delay timer/Single timer/Open delay timer, optional. The meter display can be selected in duration:1ms to 9999ms |
| Control output | NPN/PNP open collector 24V, Max100mA(only main parts) Max 20mA(Residual voltage :1V when expansion parts are connected |
| Power supply | Between 12 and 24VDC+10%, floating rate (P-P):Maximum 10% grade 2 |
| Ambient brightness | Incandescent lamp: Max. 20,000lux, daylight:Max. 30,000lux |
